Waterless disinfection airlock - Hygienic

An Innovative Solution for Demanding Environments

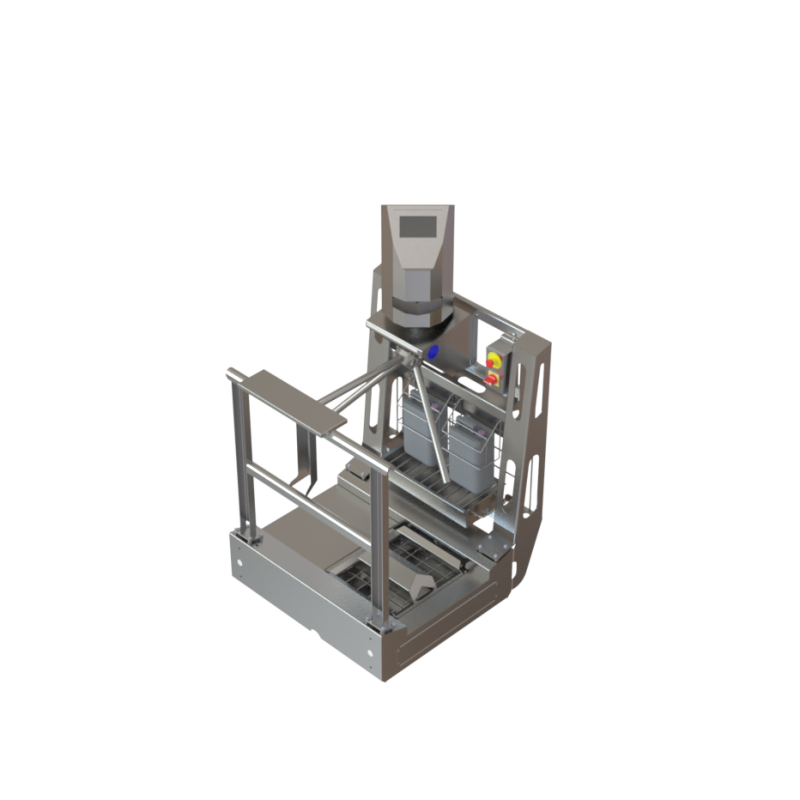

The Acinox waterless disinfection airlock is designed for sectors where hygiene is a top priority, without residual floor moisture: food industry, pharmaceutical, cosmetics, and more.

Using a hydrogen peroxide spraying system, soles are disinfected without the use of water, reducing the risk of slipping and issues related to humidity. The airlock also includes mechanical brushing of the soles to remove impurities before disinfection.

Hygienic and Smart Design

  • Hollow-free structure for easier cleaning and fewer retention areas

  • Stainless steel frame, robust and suitable for intensive industrial environments

  • Modular installation: possibility to add a sole brush or a hand disinfection tripod for a complete hygiene process

Integrated Human-Machine Interface (HMI) – Simplified Management
The Human-Machine Interface (HMI) enables full system supervision:

  • User passage tracking

  • Monitoring of consumables status

  • Maintenance alerts and usage history

The HMI is optional and compatible with all ACINOX airlock models. It can be integrated according to your specific needs and constraints.

Eco-Responsibility and Performance

  • Zero water consumption: reduced environmental impact

  • Optimized disinfectant use: maximum efficiency, controlled consumption

  • Residue-free floor technology: enhanced safety for operators

SASDES-H
Quantity


Garanties sécurité (à modifier dans le module "Réassurance")



Politique de livraison (à modifier dans le module "Réassurance")



Politique retours (à modifier dans le module "Réassurance")

Data sheet

Construction Stainless steel sheet thickness 25/10
Bottom Sloped with direct discharge G1/2
Presentation Microblasted - Railings and supports without hollow bodies
Flow rate 4 spraying nozzles 0,4L/min (Soles) and 2 dosing nozzles (Hands)
Detection 2 infrared detectors (Soles) 2 infrared detectors (Hands)
Power supply 220V 50Hz P :0,5kW
Temps de cycle 2 seconds
Consumption 5L ~ 500 cycles (Soles) 5L ~ 1,500 cycles (Hands)
Accessories 2 infrared detectors (Soles) 2 infrared detectors (Hands)

Description

This technology is compatible with all our Acinox disinfection solutions, regardless of the airlock model chosen. This gives you complete flexibility to integrate the HMI according to your needs and constraints.
