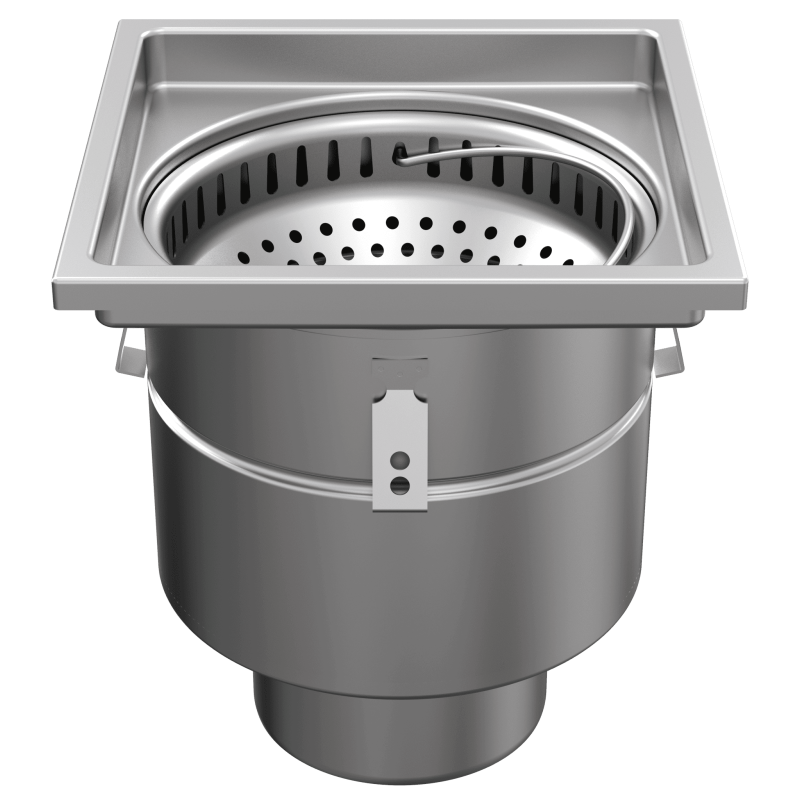

Hygienic floor drain 160 - vertical outlet with integrated basket

Fast and easy cleaning
Thanks to a design without right angles and smooth welded surfaces, any risk of bacterial retention is eliminated. This ensures quicker, more efficient cleaning and reduces production downtime through simplified maintenance.

Ultra-high drainage performance
With a flow rate of up to 5.7 L/s, drainage is up to 3 times faster, making it ideal for high-demand environments.

Certified hygienic design
Compliant with EHEDG standards, this hygienic range features a seamless, deep-drawn design with an integrated sealing gasket. The absence of a cover plate allows easy high-pressure water cleaning, making it perfectly suited for production areas and sensitive industries.

HC160VP

Options

Charge
Types of grids
Quantity


Garanties sécurité (à modifier dans le module "Réassurance")



Politique de livraison (à modifier dans le module "Réassurance")



Politique retours (à modifier dans le module "Réassurance")

Data sheet

Water guard 50 mm
Water thread 192
Tank width 157mm
Bell/Basket Basket
flange (mm) 200x200
DN (Ø mm) 110
Flange shape Square
Output type Vertical
Flow rate (L/s) 2.1
H (mm) 192

Description

Technical features:

  • AISI 304 stainless steel, pickled and passivated

  • No water retention zones

  • Fully inspectable solution

  • Optimised Hygiene Design, compliant with NF EN 14159 and EHEDG recommendations

  • Siphon housing with siphonic bell trap

  • Tank equipped with EPDM under-rim filling for excellent load resistance

  • Load classes: H1.5 – K3 – L15 – R50 – M125 – N250
